-- Vacuum Tube Tesla Coil -- |

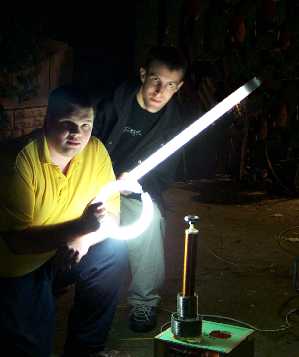

Indra showing a 150 mm normal arc - Indra lighting fluorescent tubes held by 2 of our technicians. |
___Indra is our smallest model, standing just 650 mm tall and producing arcs 150 mm in length. However it uses a CW (constant wave) drive provided by a large vacuum tube amplifier, rather than the spark gap excitation used by our other systems. This allows it to demonstrate a number of interesting RF effects, such as standing waves, current nodes, voltage nodes and quarter wave resonances. |
X |
|
___The
rf

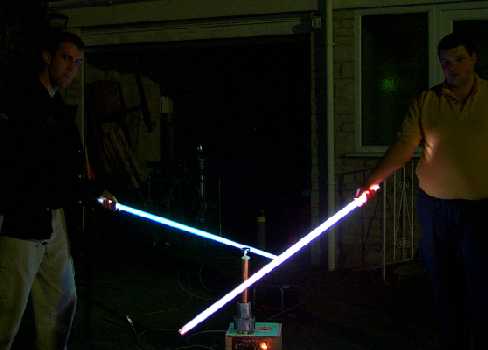

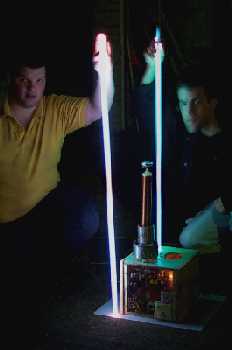

energy from an Indra is here being used to light a
pair of our custom
made discharge tubes, with no physical connections
these tubes provide
enough light to read by! Lightsabers anyone?
X |
|

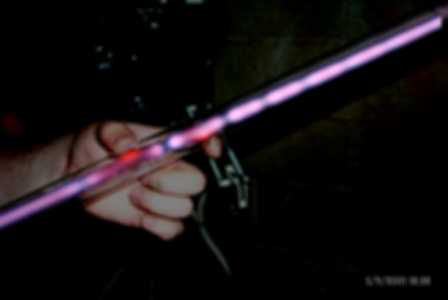

___A
plasma tube being used to demonstrate the standing
wave pattern around
an operating tesla coil, which is visible as light and
dark bands along
the tube
|
|
|
|
