We’re having a clear-out of the store room, so the following are available at discounted rates. Please note that as most of these have been sitting in storage for several years and are untested unless otherwise noted, they are offered with NO WARRANTEE OF ANY SORT – the discounted price reflects this! P&P within the UK will be charged at cost, international shipping is possible on most of the smaller (<5Kg) items and possibly by special arrangement on larger items, please contact us for an estimate. Payment by bank transfer or cash-on-collection from Reading, we do not accept Paypal. Contact Sales@legionelectronics.co.uk with any queries or to purchase any of these items. All high voltage equipment has the potential to cause serious injury or even death if misused, all buyers must be experienced in high voltage work and accept all responsibility for the safe use of these items.

Last updated 23rd May 2020


Item
Condition and Notes
Approx.
Weight,
not inc.
Packaging
Qty.
                   Price

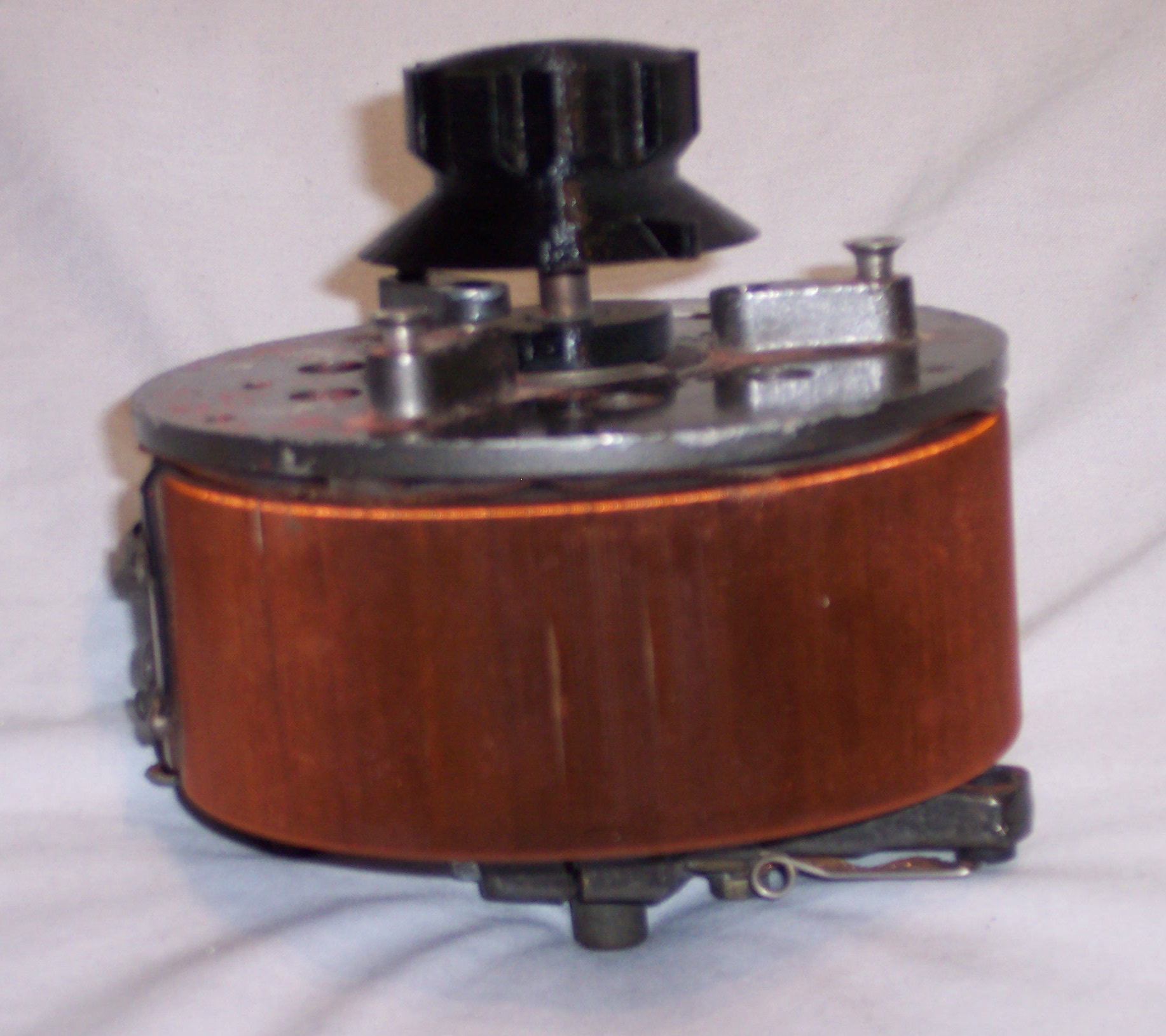

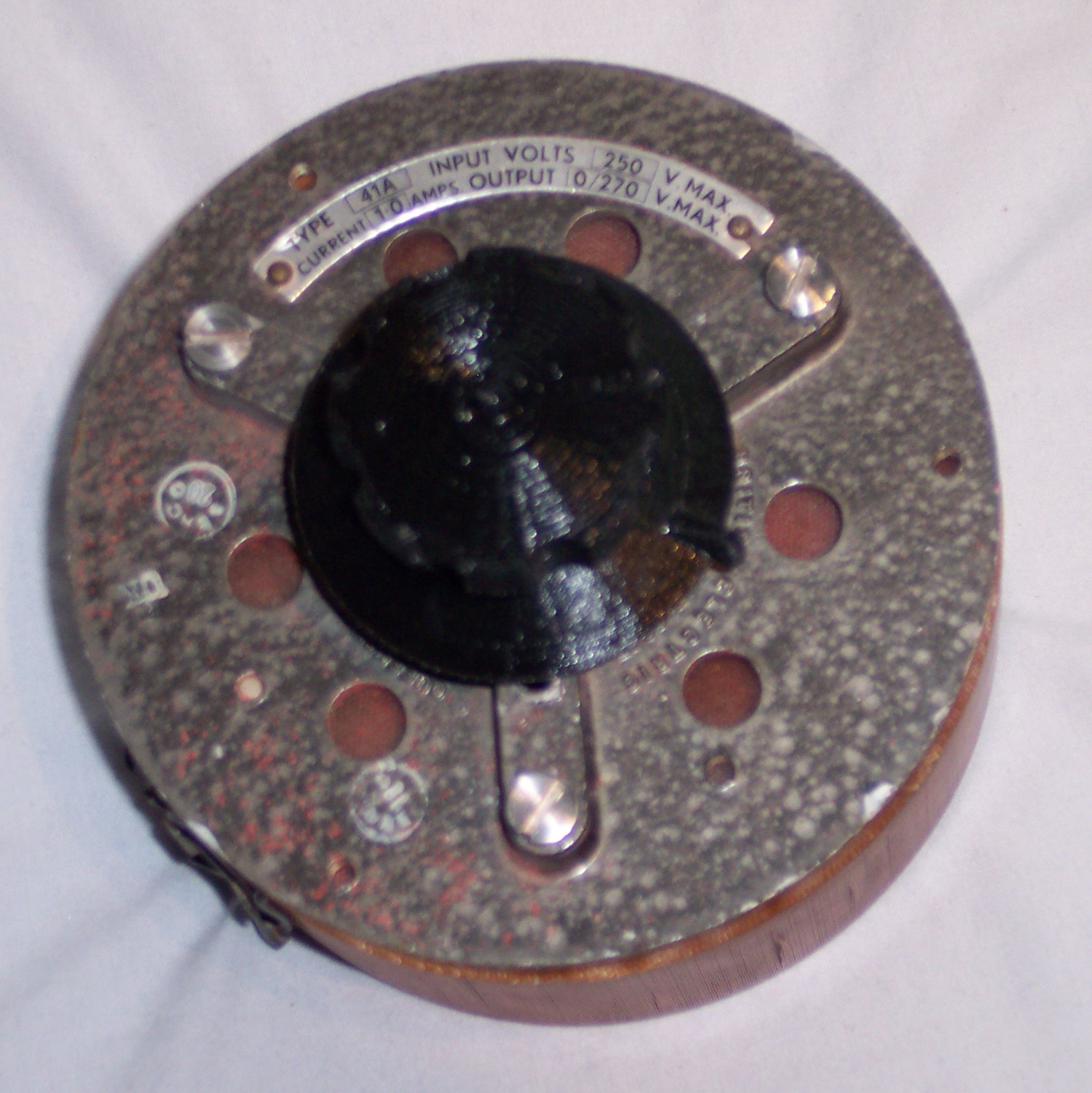

Type 41-A variac


1A, 250V Input, 0-270V Output

Some cosmetic marks on the winding, the shaft assembly has been replaced, passes continuity tests on the winding and brush

1.9Kg
1
£10.00
Carrol & Maynell Type 2F-1 Variac

2A 0-270V Output, New unused, no box
3.0Kg
1
£35.00

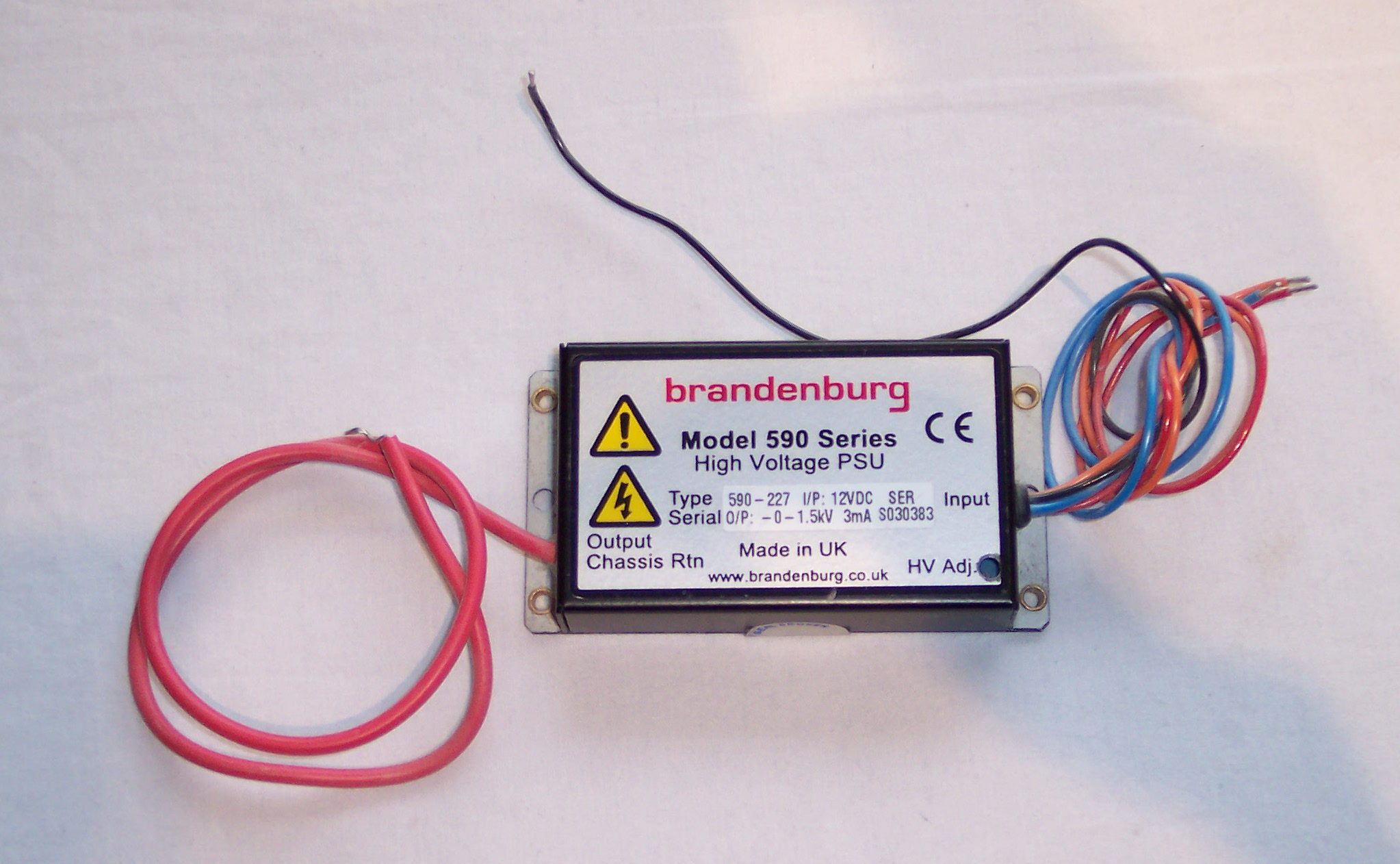

Brandenburg Type 599-227 High voltage PSU

Negative polarity 0-1.5Kv Output, 3mA, 12V Input
Used, gives output when powered up, voltage controlled from remote signal and with output monitor line.
200g
1
£40.00
811A Vacuum Tube, damaged

Used - Signs of overheating on the plate - see image. Filament passes continuity and getter is still bright. Grid looks OK so far as I can see so probably still functional
100g
1
£5.00
Matched Pair TZ-40 Vacuum Tube

New-old-stock, no box, the mica support in one of the tubes is showing considerable black spotting but both getters are still bright and the filaments are showing continuity. Sold as a pair, will not split
200g
1
£20.00
833A Vacuum Tube, used, plate heat damaged

833A Showing some heat effects on the centre of the plate (See photo), filament tests good, grid is visually OK
500g
1
£15.00
QB5 - 1750 Vacuum Tube with base

Used but looks as-new, filament has continuity, supplied with it's base mounting and anode connection cap.
800g
1
£40.00
Synchronous Rotary Spark Gap





Legion Electronics Type-4 SRSG. 240V 50Hz 750VA sync motor, rated for use with Tesla coils up to 25kVA. Uses a 280mm rotor and 10mm solid tungsten electrodes. 200 breaks-per-second asymmetric pattern, but rotor could be re-drilled for other patterns.  Designed for use with a 10% boost starter but may be able to use a DOL starter depending on your local supply voltage. Has thermal safety switch and mounting for rotation-detect switch (not fitted). Must be installed in a suitable safety enclosure!

This unit was pulled from service owing to reaching it's hours-limit but seems to still be fully functional, supplied with a new set of tungstens fitted. Spare tungstens also available, see below. One of the insulating pillars is showing some surface tracking damage (pictured) but will probably last for tens or hundreds more hours before failure and is easily replaced.

Owing to weight shipping is likely to be slow and expensive so cash-on-collection is strongly recommended
20Kg
1
£200.00
TCC HLC2011 High voltage ceramic capacitors

TCC HLC2011 High voltage ceramic capacitors, rated 820pF, voltage rating unknown but based on similar units probably in the region of 2-4Kv. Capacitance tests as within marked tolerance but no high-voltage testing done. Will split
300g each
10
£7.00ea

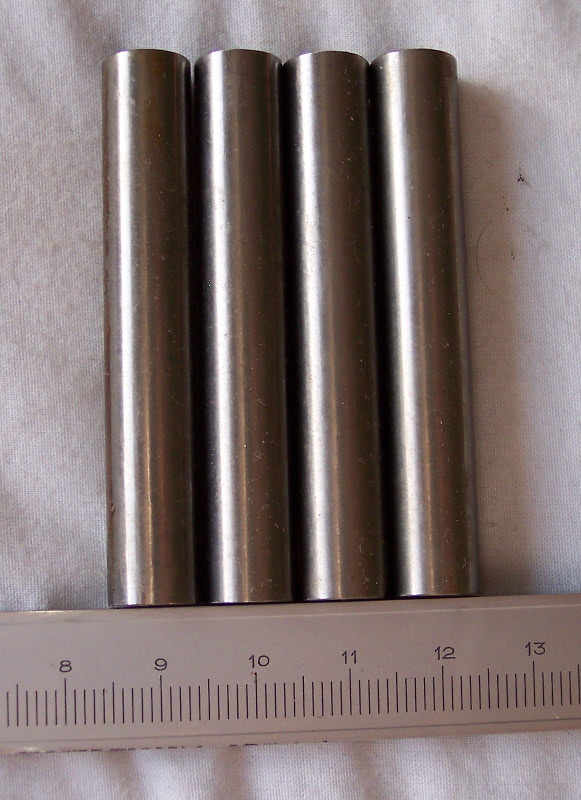

Set of 4 10mm diameter 60mm (Nominal) long Tungsten Rods

10mm Diameter Tungsten electrodes, 60mm to suit Legion Electronics Type-4 RSGs or similar. Solid tungsten not tungsten alloy or tungsten carbide. Measurements are subject to normal commercial tolerances
360g per set
2 sets
£20/set

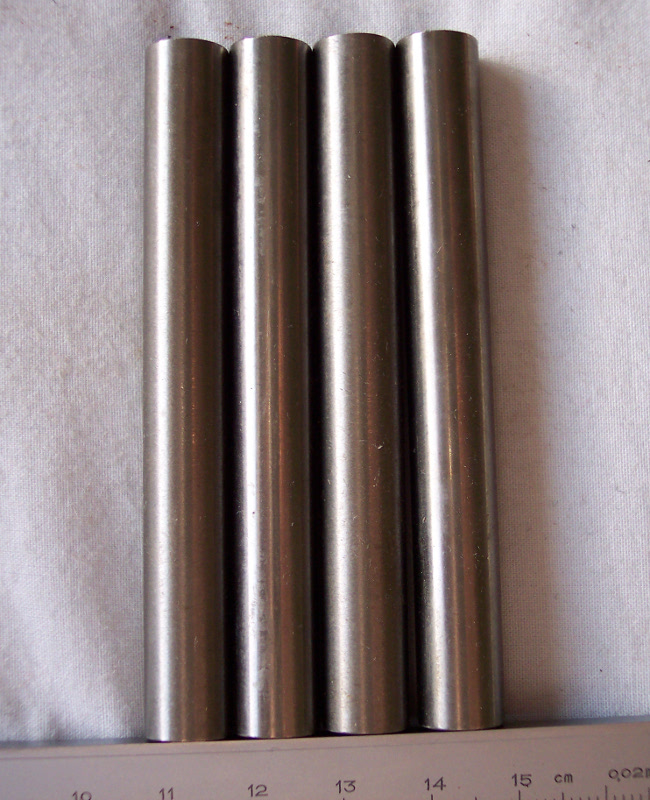

Set of 4 10mm diameter 80mm (Nominal) long Tungsten Rods
10mm Diameter Tungsten electrodes, 80mm to suit Legion Electronics Type-4/5 RSGs or similar. Solid tungsten not tungsten alloy or tungsten carbide. Measurements are subject to normal commercial tolerances 500g per set
3 sets
£25/set
Collection of assorted Tungsten rods
Various diameters and lengths or round tungsten bar, mostly 10mm diameter, 650g total weight, all solid tungsten.
650g
1
£15
Project Box

Dust-proof project box 270 x 180 x 140mm, new, has foam seal. Grey plastic body with clear plastic lid.
1Kg
1
£10

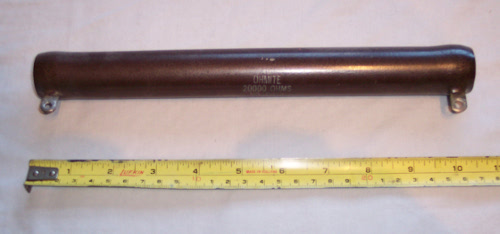

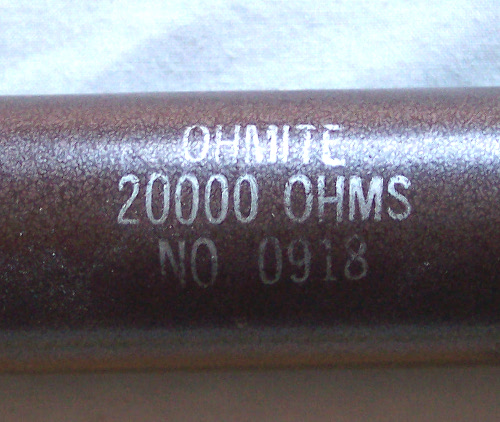

Ohmite 20,000 Ohm Wire-wound Resistor


Ohmite brand 20Kohm wire-wound resistor Type 0918, ceramic glazed surface. Wattage and voltage ratings unknown but at 270mm long and made of ceramic should be considerable.
260g
1
£5
Silicone Diffusion Fluid

Dow Corning Type 704 (EU) Silicone diffusion oil for high vacuum pumps, partially used 500ml bottle with approximately 300ml left. Manufactured 21/04/2000 so now long expired but might still be acceptable for amateur use. No discolouration of off smell from it.
370g
1
£10
Hours Counter, 240V 60Hz

Hours counter with the slightly odd rating of 240V 60Hz, 68mm cut-out with screw terminals on the back, still works fine on 230V 50Hz but reads low. The frequency difference means every hour it shows means 1h12 actually elapsed when used on 50Hz. Non-resettable, currently reading 1.00h
220g
1
£5

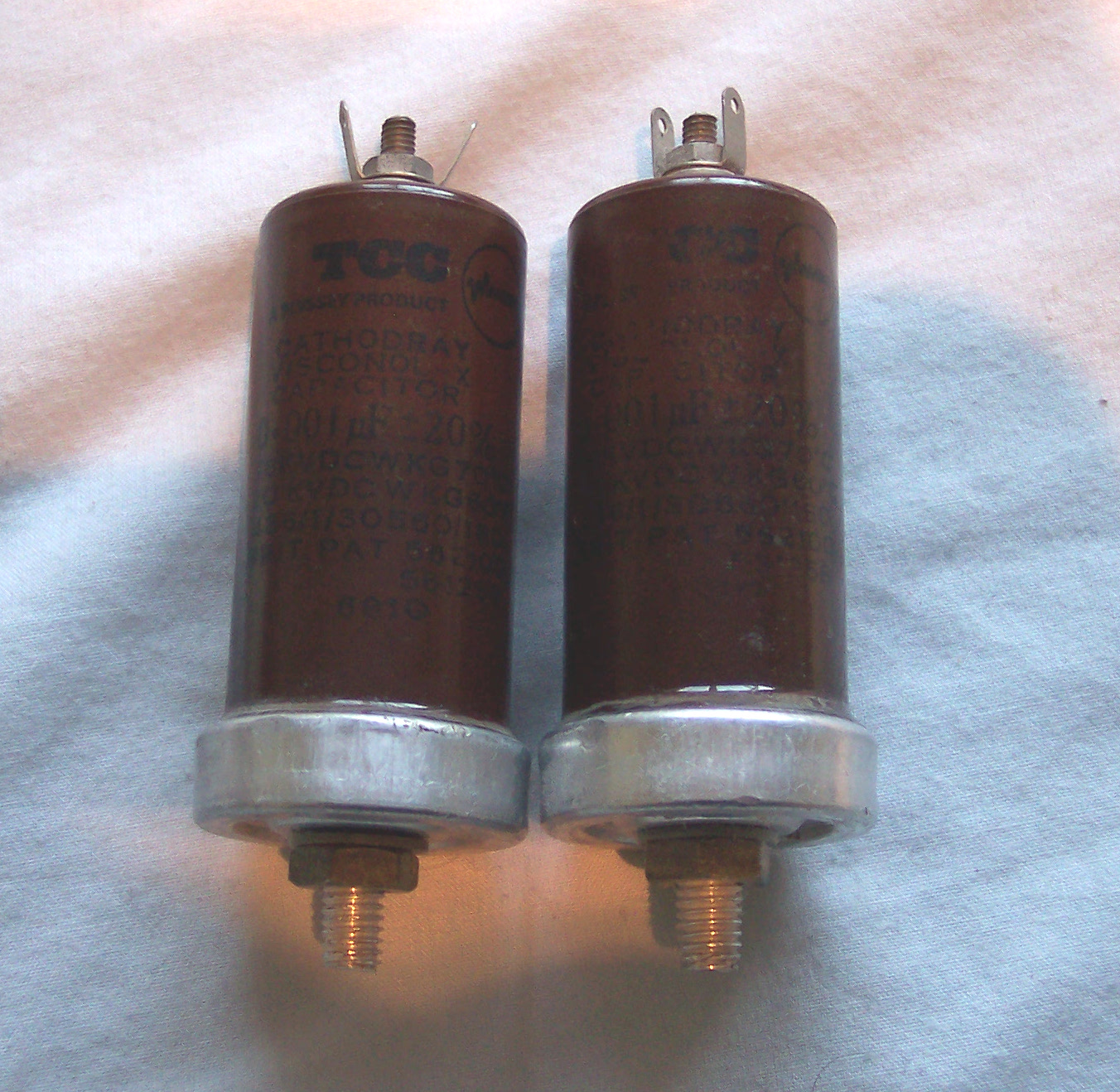

1nF 2Kv Capacitor

TCC "Cathoderay Visconol-X" capacitors, 0.001uF 2Kv DC working voltage. We believe these to be paper-foil capacitors and are NOT suitable for Tesla Coil use. Capacitance tests within tolerance but no high voltage test conducted. Stud mounting on the bottom and solder tag on top.
50g/ea
2
£3/ea
100nF 30KV Co-axial Capacitor

Condenser Products EC104-30M Capacitor. Rated 0.1uF at 30,000V DC Wkg. Suitable for Tesla coil use with appropriate voltage de-rating. Capacitance tests within tolerance, no high voltage test done but was removed from a working Tesla coil system.
3Kg/ea
2
£65/ea
6 Pole RF Co-axial switch

Narda FSCM 99899 6-way RF Co-axial switch, model number MS-SMA-063. RF switching relay, single-pole 6-way, uses as 28Vdc input on the back to switch a central SMA connector to any one of 6 SMA ports. DC coils all test good, RF side passes DC injection test, no RF tests run. Comes with some leads. Believed rated for DC-18Ghz but cannot confirm
150g
1
£50
3 Pole RF Co-axial switch

Narda FSCM 99899 3-way RF Co-axial switch, model number MS-SMA-033. RF switching relay, single-pole 3-way, uses as 28Vdc input on the back to switch a central SMA connector to any one of 3 SMA ports. DC coils all test good, RF side passes DC injection test, no RF tests run. Comes with some leads. Believed rated for DC-18Ghz but cannot confirm 120g
1
£40

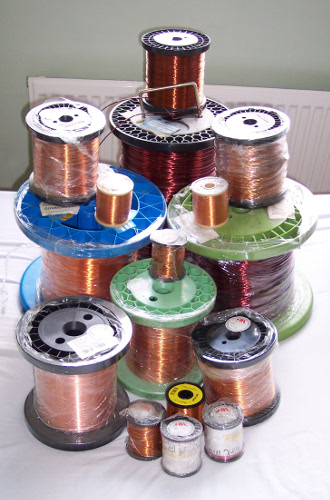

Assorted Enamelled Copper Wire

Various spools of enamel coated copper wire, suitable for winding secondaries or other electrical uses.
Size
Qty
0.4mm
2.0 Kg
1.25mm
4.5 Kg
1.9mm
15 Kg
0.5mm 2.0 Kg
0.1mm
2.0 Kg
54/0.355mm Litz Wire
2.0 Kg
0.63mm
2.3 Kg
0.6mm
2.0 Kg
0.16mm
2 x 500grm
0.14mm
2 x 500grm
1.0mm
2 x 500grm
0.224mm
500 grm

Various
N/A
£10/Kg

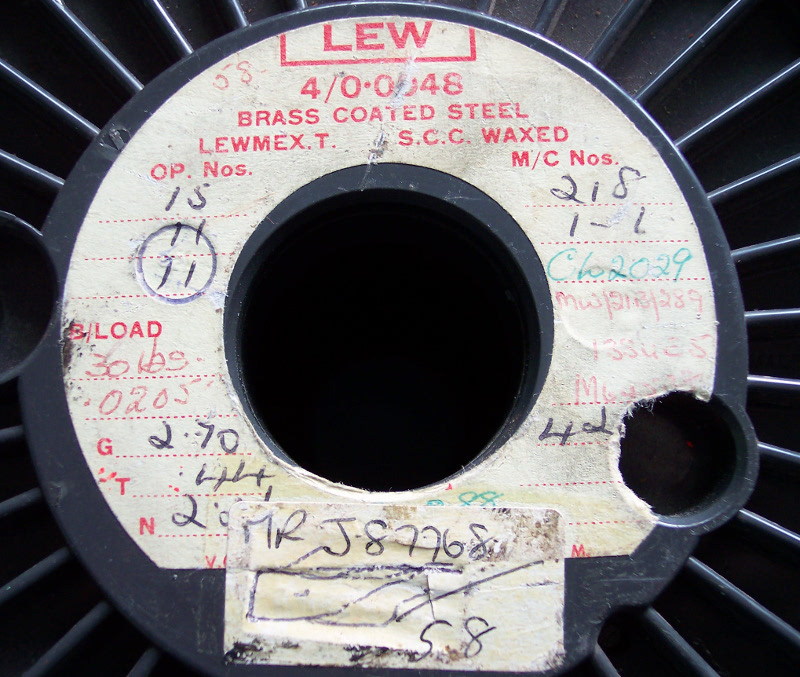

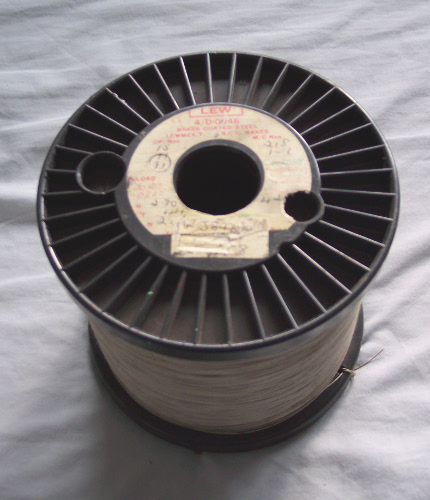

2.3Kg wax-cotton insulated brass-coated steel cored wire, 4-conductor

A 2.3 Kg spool of high-strength wire, made of 4 steel strands coated in brass and then enamel, wrapped in a waxed cotton outer jacket. See label for other specifications
2.5 Kg
1
£25

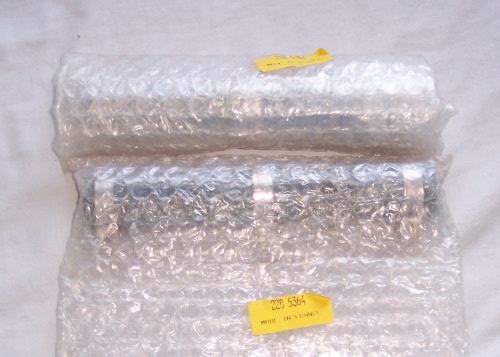

220R 200W Adjustable resistor

Wire-wound Adjustable resistor, 220R 200W, RS stock number 220-5364, new in packaging
125grm ea
2
£15

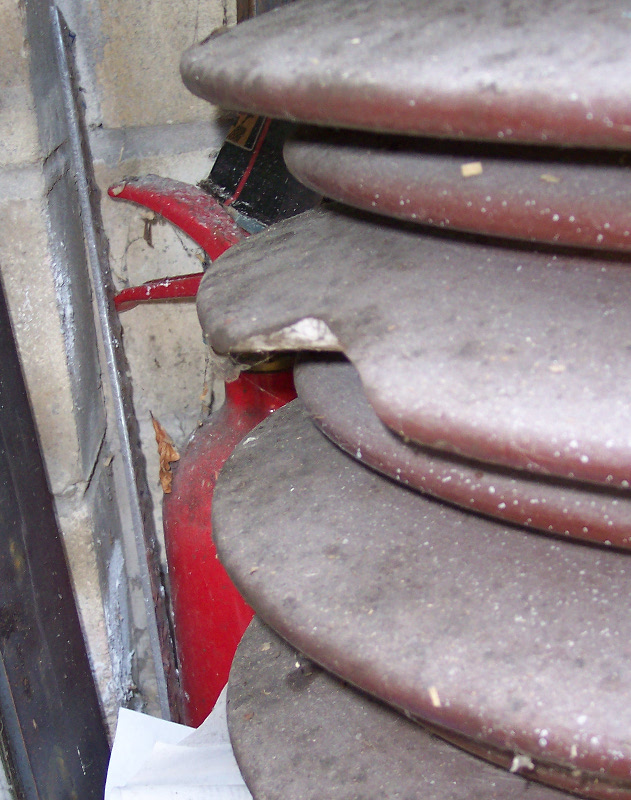

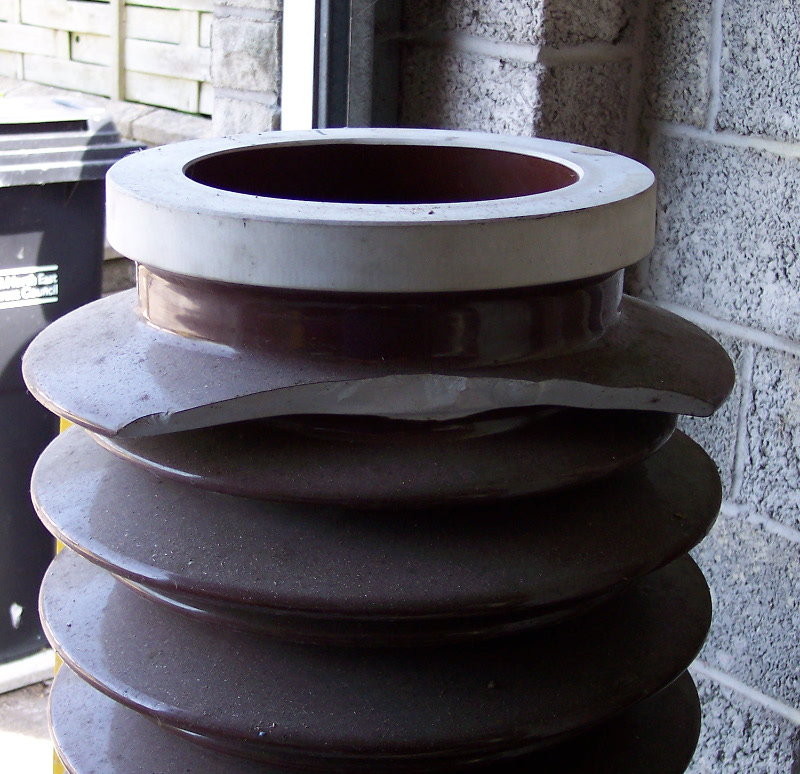

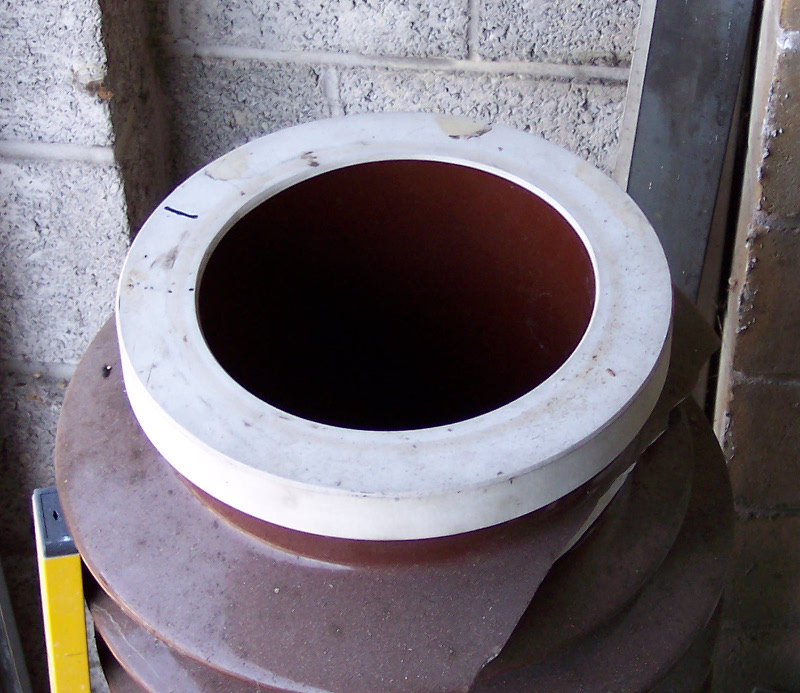

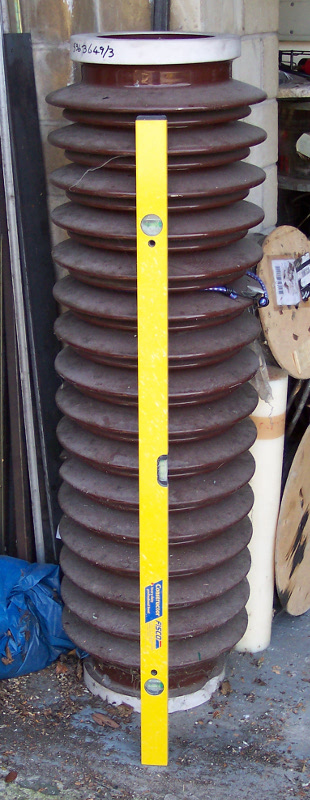

High voltage Ceramic pass-through Insulator





Ceramic pass-through insulator rated for continual service at 132 KV and intermittent service up to 400 KV when clean. Has several chips (pictured) which means it would have to be thoroughly cleaned, dried and re-sealed before high voltage use. Yellow bar in the image is 1.2m long. A little dirty from storage but clean up to a shiny brown glazed surface with ordinary non-abrasive cleaners. Owing to weight, this item cannot be shipped, it is only available for collection from Bath or Reading, or delivery within 40 miles of those cities for an additional charge Heavy!
1
£75

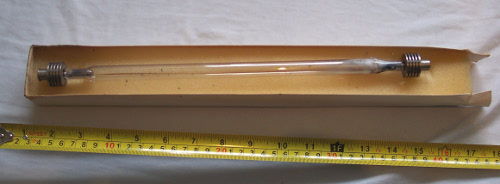

Linear Xenon Flash Tube

Xenon flash tube, 350mm Long, heavily used and has some debris inside the tube. We were told when we got it that it's rated for 1KJ per pulse but given it's age and heavy use we DO NOT recommend using it as a flash tube any more. When last used it still held xenon and would display a writhing plasma stream when energized by a Tesla coil.
180 g
1
£15
Wego 0.6uF 12Kv DC Capacitor

Wego Type 2341 Discharge capacitor, Rated 0.6uF (600nF) at 12Kv DC. 6 available, suitable for use as Tesla coil primary capacitors subject to appropriate voltage de-rating. Capacitance tests within tolerance, not been recently HV tested but were removed from a working Tesla coil system and believed still fully functional
3.7 Kg ea
6
£40ea
2 Microfarad  10KV DC capacitor

Plastic Capacitors Inc Model LK 100-205 2uF 10KVDC Working capacitors. Partial data-sheet available at http://plasticcapacitors.com/typelk.php not suitable for use a Tesla coil primary capacitor but might be serviceable as a DC smoothing capacitor for specialist Tesla coils, use the data-sheet ripple tolerance values to determine suitability for your application. Capacitance tests within tolerance but no HV tests performed
3 Kg/ea
2
£20ea
Pulse Forming Network

Type PFN2-13/350X Pulse forming network. Believed to be a 4-stage Rayleigh Line PFN although this is not known for certain. Rated to deliver a 2.125 microsecond pulse into a 34 ohm load at up to 350 pulses per second when charged to 13Kv. If our assumptions about it's type and staging are correct it should contain 4 x 8nF high voltage pulse-rated capacitors and some inductors but we don't gaurentee this as we've not opened one up and can't find data-sheets for them! Oil filled and containing a couple of high voltage feed-throughs that may also be useful. Case style may vary slightly but all have the same insulated connections. Shipping may be possible on larger quantities but for individual units will be relatively expensive so collection or delivery within 40 miles of Bath/Reading is recommended.
10Kg/ea
6
£20/ea
Pulse Forming Network

Wego Type 9457 Pulse forming network. Believed to be a 4-stage Rayleigh Line PFN although this is not known for certain. Rated to deliver a 500 nanosecond pulse into a 34 ohm load at up to 1600 pulses per second when charged to 13Kv. Similar to the units above should contain capacitors and inductors but of different values reflecting the different rating. As with the above unit no promises though as we've not ever opened one up! Oil filled and containing a couple of high voltage feed-throughs that may also be useful. Case style and manufacturer may vary but all have the same insulated connections. Shipping may be possible on larger quantities but for individual units will be relatively expensive so collection or delivery within 40 miles of Bath/Reading is recommended. 10Kg/ea
5
£20/ea
Spun Aluminium Toroid

Spun Aluminium toroid that 600 x 165 mm, 2 small dents, needs re-polishing but no major flaws. Owing to size and delicacy will not ship, collection or delivery within 40 miles of Bath/Reading only.
N/A
1
£100
Unknown Pulse Transformer / Filament isolation transformer - Southern Transformer Products LTD part STP 8858

This is labelled on the carrying plate as a pulse transformer but the winding arrangement suggests it might be suitable for a filament isolation transformer for high power valve applications. We don't really know for sure what this is or what it was for, no-one here can remember where we got them so it's up to you to find a use for them! Owing to high weight and low price shipping is unlikely to be practical.
17Kg/ea
4
£10/ea

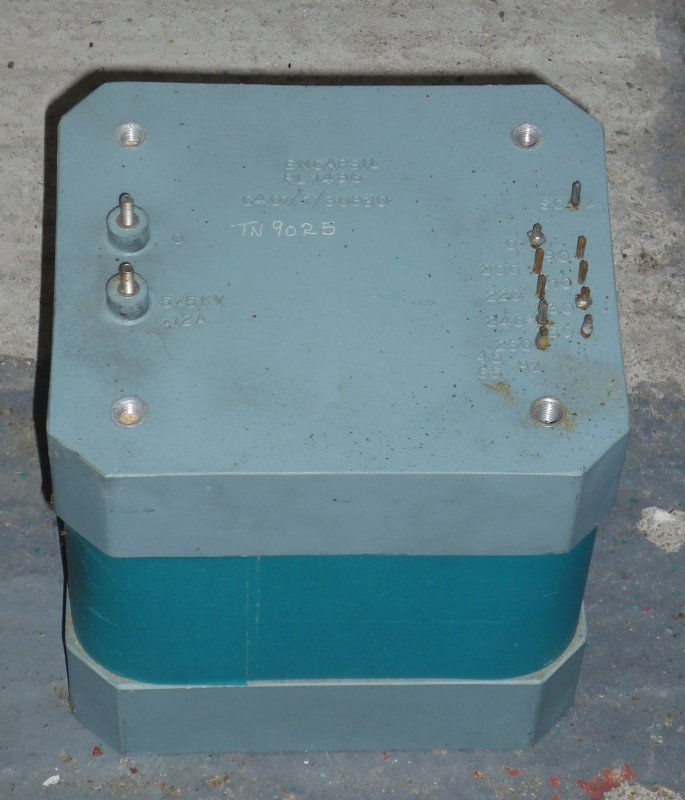

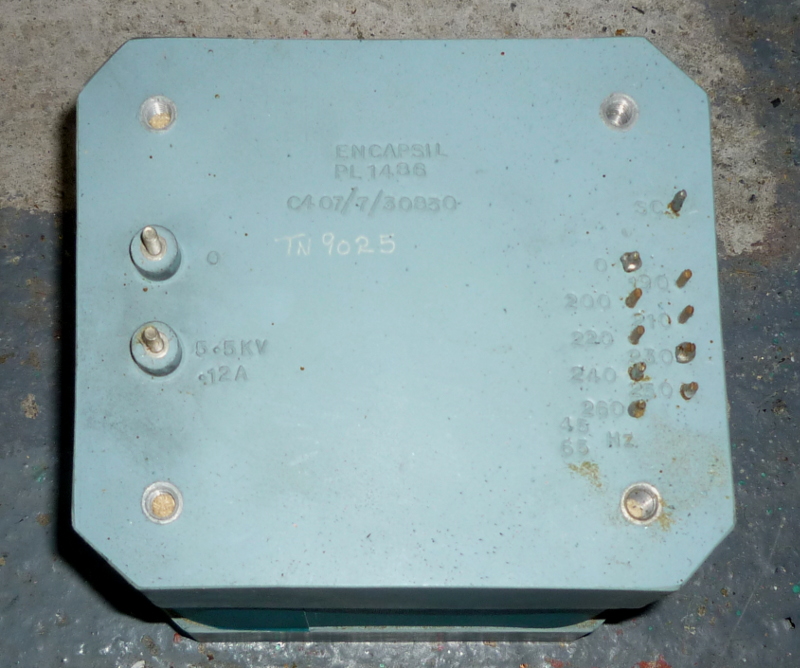

5.5Kv 120mA Transformer

5.5Kv 120mA transformers, NOT neon sign type so will require external ballasting for Tesla coil use. Primary side is tapped for 190-260Vac in 10V steps, 45-55Hz and has a screen option. Transformers are partially or fully resin potted so any sort of modification to the windings is likely to be impractical. Manufacturer, colour and potting style varies but all have the same ratings.
19Kg/ea
5
£50/ea
120H 120mA 6Kv Inductor

Inductor rated 120 Henries at up to 120mA with a hold-off voltage of 6Kv, might be suitable for a charging reactor on a small Tesla coil?
12Kg
1
£25
36H Inductor 120mA, Voltage rating unknown



Inductor rated 36 Henries at up to 120mA, might be suitable for a charging reactor on a small Tesla coil? A second one of these is available for £15 owing to having a broken HV terminal but is probably repairable.
12Kg
1
£25
HiVolt Capcitor 10nF 22Kv RMS

10nF 22KV DC filter capacitor, not suitable for use as a Tesla coil primary capacitor but maybe suitable as a DC smoothing capacitor in DC type Tesla coils, check data sheet at https://www.hivoltcapacitors.com/product-catalogue/ppr-range to determine suitability for your application
4Kg/ea
2
£40/ea
